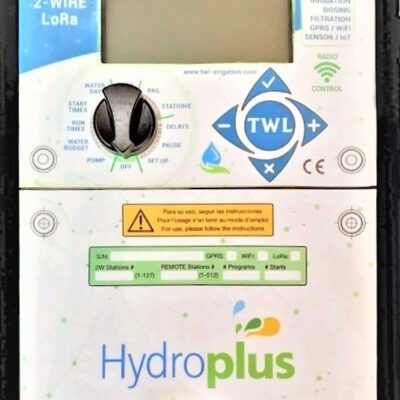

TW-4 Controller for NG Decoders

TW-4 Data Sheet

GENERAL PROPERTIES

• 24Vac Controller for 2-WIRE and RADIO decoders.
• The same programmer acts as a programming console for the field decoders.
Easy and quick to program.
• Number of decoders: Up to 127 wired stations + 128 radio stations
+ master valve + sensors.
• Number of programs: 6 independent and overlapping programs.
• Number of starts: 6 starts per program.
• Cycle duration: up to 7 days. (days, interval, odd or even).
• Programming times: from 1 minute to 12 hours per valve, with descending
counter in minutes.
• Wire range up to 1,500 m {5000ft}, and Radio up to 12Km (7.5Mi).
• MANUAL START of stations and programs with “countdown”.
• Programmable delay between stations and / or pump.
• DOSIFICATION PROGRAM of up to 4 fertilizers with independent waiting time and
dosing time.
• Up to 8 Master-Valves and / or Pumps. Configurable.
• Communications port for remote control through Hydro-Plus by GPRS or Wifi
communication.
• Up to 16 sensor inputs: 2 of ON - OFF / 4 of 4 - 20mA / 6 of digital CC / 3 of digital
1 - 255Hz / 1 of SDI-12.
• Outdoor box with press releases-catch and safety lock.
• Outlets for outdoor antenna and sensor inputs.
• Program “D - F” configurable in minutes or seconds with inhibition from the N/C
sensor. This allows us to connect pressure differential pressure switches for the
automatic WASHING OF FILTERS, connection to fertilizer injection pumps or short
sequential irrigation.
• Easy installation, programming and use thanks to its versatile design and its
hybrid control system.
• Rotary mechanical control menu and 4-key ergonomic keyboard.
• Digital display with icons that make its management very logical and simple.
• PAUSE and DELAY menu positions.
• Budget adjustment between 10% and 400%.
• Input for activation of master valve and two inputs for sensors, one normally open
(differential pressure switch for washing filters), and the other normally closed
(rain sensor).
• Non-volatile memory that keeps the programs made and are not deleted in case
of blackouts. Internal Lithium battery to maintain the time and calendars in case
of power outs.

TECHNICAL SPECIFICATIONS

• Voltage: 110 / 220V transformer from 1000mA to 24Vac.
• Output 24Vac.
• 2 x 24Vac solenoids per decoder.
• Connection strip: cables up to 1.5 mm.

MEASUREMENTS

• Height: 220mm
• Width: 160mm
• Depth: 50mm
• Weight: 460g

OPTIONS

• 24Vac solar kit

MODELS

• TW4/2W DECODER OUTDOOR + COM
RELATED ACCESSORIES
• TW/NG-1 Field Decoder 1 valve 24Vac

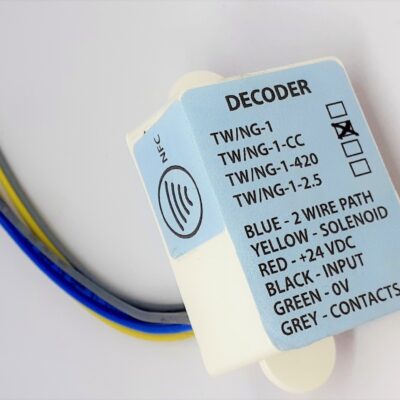

• TW/NG-1-CC Includes contact closure sensing
• TW/NG-1-420 Includes 4-20mA sensor reading
• TW/NG-12.5v Includes 0-2.5v sensor reading
• eCoil-Low Current Solenoid 24Vac
• OASIS-4 LORA/Remote Valve controller 4 station
